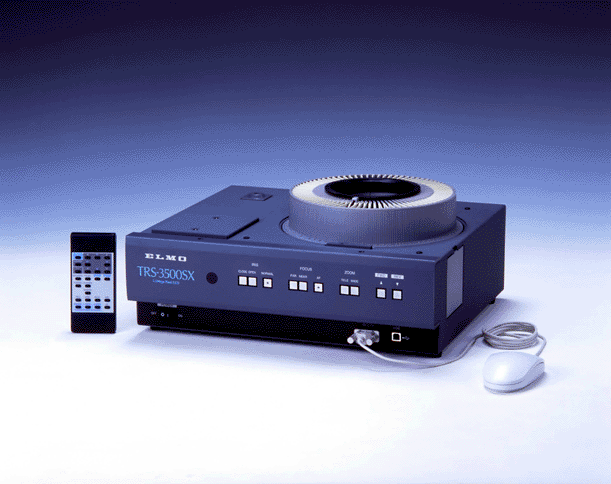

TRS-3500SX
HIGH
RESOLUTION SLIDE FILM PRESENTER
TRS-3500SX
is for professional presentation of 35mm slide film with
SXGA (1280x1024) resolution. Its 1.5 Mega Pixel
Progressive-Scan CCD produces the best RGB output for fine
slide film images.
|
| FILM
TRANSPORT |
| Film |
35mm
slide film (2x2 mount slide)
|
| Film
capacity |
80
slides
|
| Film
loading |
Standard
circular tray
|
| Slide
transport |
Foward
ans Reverse. Remote control possible
|
| OPTICS |
| Focusing |
Powered
(manual/one push AF)
|
| Iris |
Powered
(manual/auto)
|
| Light
source |
12V-8W
Lamp
|
| Zooming |
2.5x
powered
|
| OTHERS |
| Demensions |
420mm(W)x360(D)x141mm(H)
(16.5"x14.2"x5.6")
|
| IR
remote |
Supplied
|
| Mouse |
Supplied
|
| Option |
5"
TFT LCD monitor (LM5011N),Monitor bracket (MS-201)
|
| PC
link software |
Supplied
(ImageMate for TRS-3500SX)
|
| RGB
cable |
Supplied
|
| USB
cable |
Supplied
|
| Weight |
12.5kgs
(28lbs)
|
| OUTPUT
TERMINAL |
| Analog
RGB output |
DSUB
15 Pin connector (75ohm unbalanced)
|
| Composite-video
output |
RCA
Pin jack (75ohm unbalanced)
|
| S-video
output |
Mini
DIN 4 Pin connector (75ohm unbalanced)
|
| PICTURE |
| Composite-video
output |
NTSC/PAL
conformable
|
| Effictive
picture element |
1280(H)x1024(V)
|
| Frame
rate |
7.5
frame/sec.
|
| Gamma
correction |
ON/OFF
|
| Image
pick-up element |
1/2"
progressive scan CCD
|
| Output
signal |
Analog
RGB 1280x1024 (SXGA) @75Hz
|
| Resolution |
More
than 720(H)x720(V) TV lines (RGB output)
More than 350(H)x350(V) TV lines (Video output)
|
| S-video
output |
NTSC/PAL
conformable
|
| Sync.
System |
Internal
|
| Total
pictrue element |
1434(H)x1050(V)
|
| White
balance |
Full
auto/one push/manual
|
| POWER |
| Power
consumption |
0.85A
(102W)
|
| Power
source |
AC120V
60Hz
|
|
