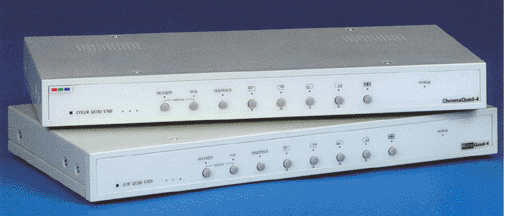

Quads & Multiplexers MonoQuad-4 MonoQuad-4 is a full function high-resolution 4-input quad processor. MomoQuad-4 is a high resolution (1024x512) real time, 4-input unit. Real time refresh, full alarm operations, on-screen Time, title and setupmenu. Download PDF   Adjustable Alarm Duration   Yes Alarm Control Output   NO and NC contacts:1A@DC24V Max. Alarm Sensor Input type   Normal open / Normal close Alarm Types   Video loss and alarm sensor contact detection Buzzer On/Off Switch   Yes Camera Dwell Time   Yes Camera Terminations   75ohm/Hi-impedance Selectable for each camera Camera Title   8 Characters for each camera Camera Type   B/W Digita Memory   1024x512 Dimension (H,W,D)   1.75"x17"x7.9" Number of colors   256 grayscales Operatiog Temperature   32F to 122F Power Adaptor   120V~230VAC input, DC12V Output, UL CSA&CE Approved Power Consumption   DC12V/4W Rack Mountable   EIA 19" Standard muonting rack Refresh rate   30 (25) Remote Control / RS-232C   Maximum Distance 1000ft Security Lock   Yes Time/Date   Built-in Clock with back up battery VCR Play Back Input   1Vp-p, 75ohm Video Format   EIA/CCIR x 4 Video Gain Adjustment   Manual Video Output   Video output to monitor x , 1Vp-p,75ohm Termination Quad video out to VCR x 1 1Vp-p, 75ohm Termination Video input loop through x 4, 1Vp-p, 75ohm Termination Weight   5.5lbs ^ GO TO TOP
