| Black
& White Security Cameras

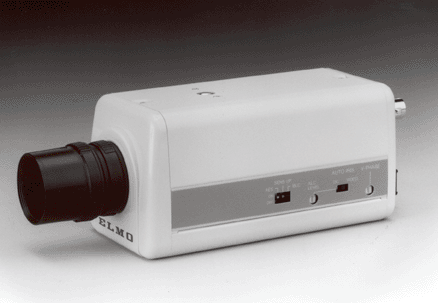

SE420
CCD
black & white video camera
Low
light sensitive CCD B&W Camera from ELMO featuring
high resolution, backlight compensation and automatic
electronic shutter. All adjustments are external for ease
of installation.
|
| |
| AES
(Automatic Electronic Shutter) |
Provided
(Factory-set at OFF)
|
| AGC
|
Built-in
|
| Ambient
humidity |
30%~90%
|
| Ambient
temperature |
-10
C~50 C(14 F~122 F)
|
| Auto-iris
terminal |
4P
square connector
|
| Backlight
compensation |
Provided
(Factory-set at OFF)
|
| Dimensions |
60(W)x60(H)x120(D)mm(2.4x2.4x4.7in)
|
| Effective
picture element |
768(H)
x 494(V)
|
| Electronic
shutter |
8
steps (1/60~1/10000 sec)
|
| External
Sync. input |
VBS
1V (p-p) 75 ,BNC Connector
|
| Lens
mount |
CS
|
| Minimum
illumination |
0.06
Ix (F1.2 under incandescent lamp, w/Sens-up ON)
|
| Output
signal |
VBS
1V (p-p) 75 ,BNC Connector
|
| Pick-up
device |
1/2"
Black & White Interline Transfer CCD
|
| Power |
AC24V
10%Hz 0.5Hz
|
| Power
consumption |
Aprox.
4.3W
|
| Power
terminal |
3P
screw terminal
|
| Resolution |
More
than 570TV(H) lines
|
| S/N
ratio |
More
than 50dB
|
| Scanning
area |
6.45mm(H)x4.84mm(V)
|
| Scanning
frequency |
15.75kHz(H),
60Hz(V)
|
| Scanning
system |
2:1
interlaced
|
| Sens-up |
Provided
(Factory-set at OFF)
|
| Sync.
system |
Line-lock/Internal/External
|
| Weight |
520g(1.17lbs)
|
|
