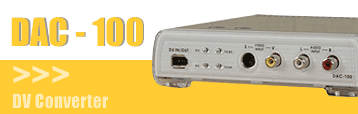

	The Bridge Between Digital and Analog Video PC, Power Mac and iMac platform video editors now have a simple, competent solution for transferring video and audio back and forth between analog tape and DV. --> Unedited customer comments about the DAC-100
	Unit Dimensions/Weight Width: 6.15 inches, 156 mm, Depth: 6.0 inches, 150 mm Height: 1.6 inches, 40 mm, Net Weight: 0.88 lbs/0.4 Kg

FRONT PANEL

Digital Video Input:
Two 6-pin FireWire (iLink) I/O ports. Available in NTSC 4:1:1 or PAL 4:2:0, DV25 format (25Mbps data transfer rate).

Analog Video Input:
Y/C (S-Video) (DIN 4-pin 75 ohm) Y: 1.0Vp-p, C: 0.627Vp-p.
Composite (RCA 75 ohm)
1.0Vp-p.

Analog Audio Output:
Two unbalanced audio RCA.

LED Indicators:
Video input source: AV or DV.
Digital audio sample rate: 32KHz/12-bit or 48KHz/16-bit.

REAR PANEL

Digital Video Input:
Two 6-pin FireWire (iLink) I/O ports. Available in NTSC 4:1:1 or PAL 4:2:0, DV25 format (25Mbps data transfer rate).

Analog Video Input:
Y/C (S-Video) (DIN 4-pin 75 ohm) Y: 1.0Vp-p, C: 0.627mVp-p.
Composite (RCA 75 ohm)
1.0Vp-p.

Analog Audio Output:
Two unbalanced audio cables (RCA).

LED Indicators:
Video input source: AV or DV.
Digital audio sample rate: 32KHz/12-bit or 48KHz/16-bit.

 KEY FEATURES

Selectable video standard:
NTSC (525 lines / 60Hz), PAL (625 lines / 50Hz).

Inputs: DV, Y/C, composite.

Outputs: DV, Y/C, composite.

Two 6-pin FireWire (iLink) I / O ports, available in NTSC 4:1:1 or PAL 4:2:0 DV25 format (25Mbps data transfer rate).

Selectable video level, at 0 IRE or 7.5 IRE.

Video comb filter for high quality video.

Video input source auto-detection.

Audio Sampling Rate:
Selectable 32KHz (12-bit) or 48 KHz (16-bit) for unbalanced audio.

Audio Decoding Rate:
Selectable 32KHz, 44.1KHz or 48KHz DV audio decoding.

Formats:
DV (iLink), Digital 8, Video 8, Hi8, VHS, S-VHS, VHS-C and S-VHS-C, U-Matic, etc.

Computers:
Power Mac, iMac, Windows 98 / ME / 2000 and XP.

General:
Power input: + DC 5V, 6W.

Accessories:
External switching power
AC/DC adapter 90 - 240V AC,
50/60Hz, + DC 5V/6W

Cable Sets:
RCA cable 3R to 3R (1)
Y/C (S-Video) cable (1)
IEEE 1394/400 Mbps FireWire Cable (1)
1.8m IEEE 1394 6-6 Cable (1) Instruction Manual
