This is a high quality, inexpensive solution for interactive kiosks and displays.
The CP-100 PRO Kiosk player delivers up to 21 tracks of user selected S video or Composite video with audio from VCD's or DVD's. The first track on the CD or DVD is considered an "attract loop" which plays continuously until any one of up to twenty switches is pressed and another specific track is selected. When the selected track is finished, the program returns to the attract loop.
Menus are simple. All you do is label the button/switches.
12V operation possible.

Unit Dimensions/Weight
Width: 7.5 inches, 190.5 mm, Depth: 12.8 inches, 317.5 mm
Height: 2.5 inches, 63.5 mm, Net Weight: 5.7 lbs/144.78 Kgs

 SPECIFICATIONS

Formats: Standard data CD (player included)
DVDR+? (add your own player)
Track Capacity: Attract Loop is always track 1, plus tracks 2-21.
Track selection: Via contact closures made by switches that you provide. Any track between 2 and 21 can be assigned to any button by connecting that switch to the desired connection on the terminal strip.

Power Required: 120 Volts, 60 Hz. 75 Watts??
Physical:

Accessories: IR Remote control (included)
Warranty: One year parts and labor
Attract Mode: Plays track one attract loop continuously until a momentary contact switch is pressed.
Programming: No programming needed. Just connect your switches to the terminal strip and use the DB9 cable to connect to the controller.

Audio: Line level, unbalanced, stereo RCA connectors

Rear Panel Connectors:
One serial data jack from control box
One 12vdc power in jack
Two RCA audio out connectors.
One S Video out connector

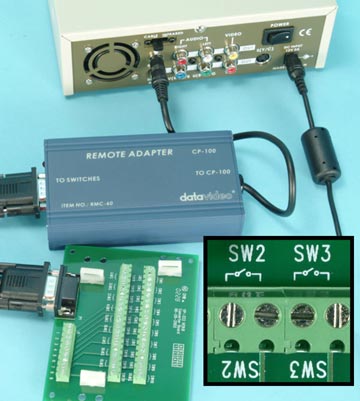

 PICTURE WITH THE CONTROLLER AND CARD

FEATURE SUMMARY using the wireless REMOTE Control

(1) Every press on the left arrow key will go back a pre selected time increment that is stored at
set up. (5,10,20,30 second selectable).

(2) Multi-language support. (English, French, German).
