SINGLE CHANNEL FULL FRAME 4:2:2
	Improve Video Signal Quality – Get clean video captures Most video camcorders produce relatively unstable, synchronized signals. This can cause poor video image quality when capturing to your PC or recording to another deck. The TBC-100 corrects this by replacing all sync signals from the video source with new signals.

 SPECIFICATIONS

Inputs
Y/C Video (S-Video) 4-pin 75 ohm
DIN connector
Composite video 75 ohm RCA connector, level: 1.0VP-P

NO AUDIO INPUT - NO AUDIO DELAY
PLEASE SEE TBC-1000

Outputs
Y/C Video (S-Video) 4-pin 75 ohm
DIN connector
Composite video 75 ohm RCA connector
Level: 1.0VP-P/Unity

General
Frequency response S-Video 4.5 MHz +/- 3dB
DG, DP +/- 2%, 1
S/N Ratio > 50dB
Component Y.U.V. 4:2:2 8-bit, Y: 13.5MHz
Single channel full frame Time Base corrector
Auto Detects NTSC and PAL signals
Power requirement DC +5V/700mA or +12V/150mA
Ambient Temperature range 32’-131’F (0’-55’C)
Ambient Humidity < 90%
Weight 2 lbs

Accessories
Y/C (S-Video) cables
Power extension pigtail for PC RCA/RCA

 KEY FEATURES

Compatible with VHS, VHS-C, S-VHS, S-VHS-C Video 8, Hi 8 and Digital 8 format.

Digital frame synchronization with full frame memory.

Re-generates all synchronization signals to stabilize the video.

Auto-detects NTSC or PAL format Wide bandwidth- 4.5MHz in Y/C and 3.5MHz in composite
8-bit video resolution - 4:2:2 sampling rate DP < 1 Degree – DG less than 2%
Low noise - S/N ratio > 50dB

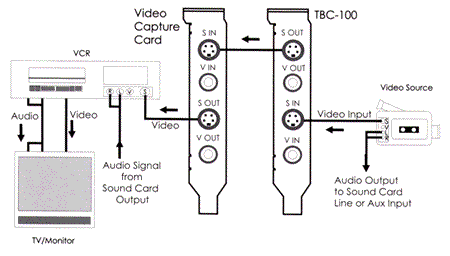

 INSTALLATION WITH A VIDEO CAPTURE CARD

 TYPICAL INSTALLATION

 INSTALLATION WITH A VIDEO CAPTURE CARD

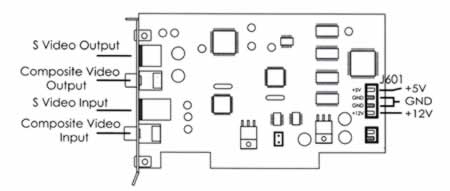

 CONNECTION

1. If you connect both S-Video and composite video sources to TBC-100, the card will automatically default to S-Video. For composite video, you can not plug in an S-Video input.

2. DC power input connector J601, use the enclosed "Pigtail" connector to connect the power source from PC power supply to TBC-100.

Pigtail Extension Connector (included)

3. TBC-100 apply both S-Video and Composite Video outputs for either S-Video or composite video input.
